LS Forged Piston Rings

(No reviews yet) Write a Review
SKU:
LSXE.136.SM.8531005
UPC:
190861222649
Availability:
In Stock
Gift wrapping:
Options available
$99.99

Description

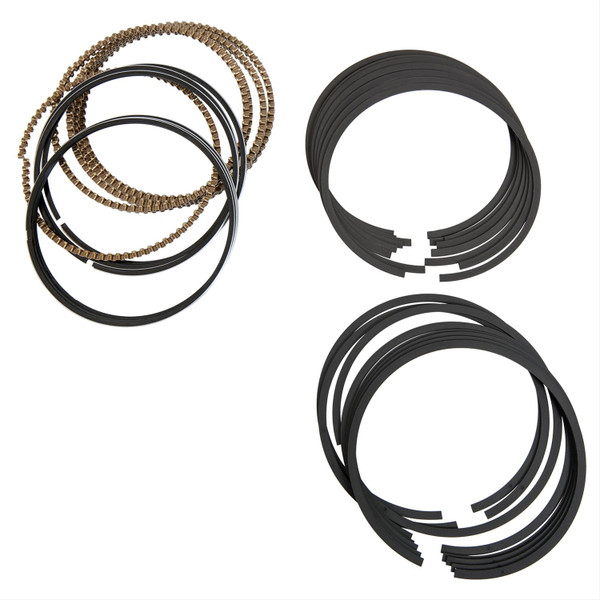

Do it right with these Pro LS forged piston rings. These replacement ring sets serve a variety of important roles, including sealing the combustion chamber, improving heat transfer from the piston to the cylinder wall, and regulating engine oil consumption.

  • Bore (in): 3.780 in.
  • Bore (mm): 96.012mm
  • File Fit: Yes
  • Gapless: No
  • Top Ring Included: Yes
  • Top Ring Thickness: 1.5mm
  • Top Ring Material: Steel
  • Top Ring Facing Material: Plasma-moly
  • Second Ring Included: Yes
  • Second Ring Thickness: 1.5mm
  • Second Ring Material: Ductile iron
  • Second Ring Facing Material: Ductile iron
  • Oil Ring Included: Yes
  • Oil Ring Thickness: 3.0mm
  • Oil Ring Tension: Standard
  • Oil Ring Tension Rating: 13 lb.
  • Oil Ring Material: Stainless steel
  • Quantity: Sold as a set.
  • Notes: Max. radials are 0.152 in. top, 0.169 second.
