The camshafts listed here are all for use in the LS-based engines (4.8L-6.2L).

COMP Cams® has never forgotten that performance is defined by results –both at the track and on the street. We spend thousands of hours working with individuals, teams and companies to ensure that our products provide superior performance and reliability. Whether we’re working with a Pro Stock or Sprint Cup team, or putting thousands of grueling miles on one of our pro touring or street/strip components, we test our products in the same places you do. That’s why we know that every COMP Cams® product will perform to the highest of standards.

COMP Cams® is driven by technology. We employ the industry's largest and most highly trained engineering staff, and the most sophisticated manufacturing processes and test equipment in the world. And because of our wide scope of applications, technologies developed for the highest levels of NASCAR and NHRA will find their way into our products for your street machine, too. The integration of research, engineering and development at COMP Cams® is what we call our “Systems Technology” and it consistently proves itself by out-performing the competition.


  • You keep saying you want that old-school choppy sound, well now you've got it!

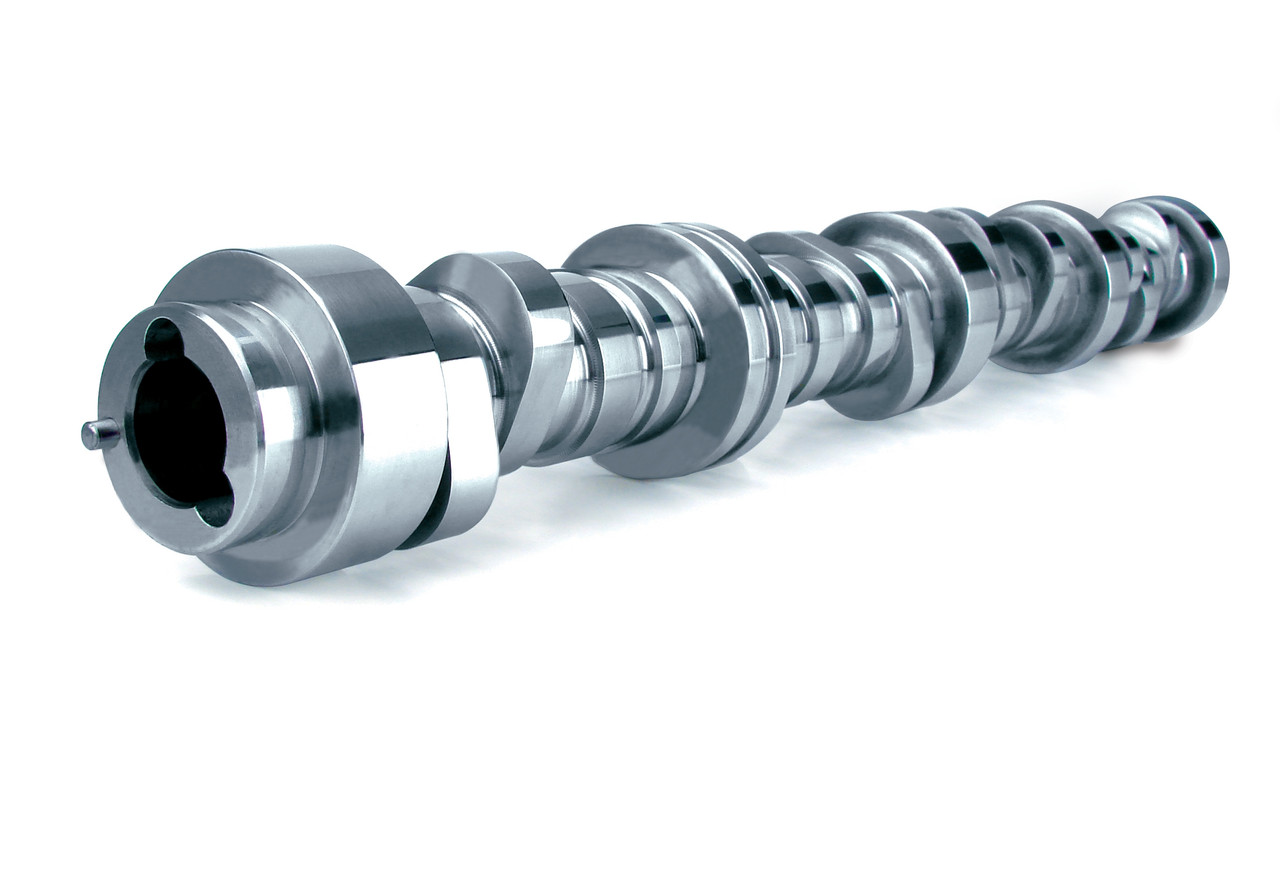

Comp Cams Thumpr Cam

Hydraulic roller cam for GM LS Gen III/IV 8 Cylinder '97-Current Three-Bolt 4.8/5.3/5.7/6.0/6.2/7.0L Engines. Provides a choppy/thumping idle. Good for operating range of 2,000-6,400 RPM. Best if used with a 2000+ RPM Stall and gears.

Duration: 275/295 Intake/Exhaust
Lobe Separation: 109*
Duration @ .050": 219/233
Valve Lift: .553/.536
Lobe Lift: .326/.316 You keep saying you want that old-school choppy sound, well now you've got it!

Comp Cams Thumpr Cam

Hydraulic roller cam for GM LS Gen III/IV 8 Cylinder '97-Current Three-Bolt 4.8/5.3/5.7/6.0/6.2/7.0L Engines. Provides a choppy/thumping idle. Good for operating range of 2,000-6,400 RPM. Best if used with a 2000+ RPM Stall and gears.

Duration: 275/295 Intake/Exhaust
Lobe Separation: 109*
Duration @ .050": 219/233
Valve Lift: .553/.536
Lobe Lift: .326/.316

    Thumpr 275T

    CompCams

    MSRP: $449.99
    $395.99
    You keep saying you want that old-school choppy sound, well now you've got it! Hydraulic roller cam for GM LS Gen III/IV 8 Cylinder '97-Current Three-Bolt 4.8/5.3/5.7/6.0/6.2/7.0L Engines. Provides a choppy/thumping idle. Good for operating range of...
    MSRP: $449.99
    $395.99
  • No more guessing, no more hoping and wishing, no more piecemeal of cam/lifter/rocker/spring combos....now you can get it all in one place! Recommended for 6.0 LS engines running up to a 76mm turbo and significant boost.

This is an exclusive kit only available from LSX Everything! Here is what is included:

Comp Cams Turbo Cam: 221/225 @ .050 Duration, LSA: 114.0. Lift .608/.612

Recommended Stall: 2500-2800; 3000 Max

 Lifters:

Hydraulic Roller Lifters from COMP Cams® decrease friction and increase longevity when directly compared to flat tappet lifters. They also accept much more aggressive cam profiles than flat tappet lifters allow. Hydraulic Roller Lifters are perfect performance replacements for stock hydraulic roller lifters or retro-fit hydraulic roller lifters for non-roller blocks. Both the OE style Hydraulic Roller Lifters WITH link bars and the retro-fit Hydraulic Roller Lifters WITHOUT link bars can be used with all hydraulic roller camshafts from COMP Cams®.

PushRods:

The pushrod is one of the most important pieces of the valve train, but all too often it’s taken for granted. Pushrods not only have to be strong enough to not fail, bend or burn up at the ends, they must also match the frequency of all the rest of the parts in the valve train, as well as the rpm at which the engine will be run. Today’s all-out race engines demand the highest quality components at every step, and COMP Cams® Hi-Tech™ Pushrods fill that requirement.

Hi-Tech™ Pushrods feature a one-piece design from .080” wall, seamless chromemoly tubing that ensures the ultimate in strength and durability. Ends are precision formed, yielding added thickness and strength in the critical tip area, while maintaining constant wall thickness and concentricity. The pushrods are then heat-treated for maximum strength to ensure compatibility with guide plates. They are OD ground for consistency and black-oxide finished with length and part number laser etched on the OD for ease of identification.

One-piece construction from .080” wall, seamless chromemoly
Heat-treated for extended durability & guide plate compatibility
Precision formed & reinforced ends
Black-oxide finished with laser etched part number & length
Ideal for serious street performance & race applications
Springs

Outer Valve Springs from COMP Cams® allow you to build the perfect spring assembly for your application. The valve spring creation process is far more involved than most people realize. Selecting the right metal stock and creating the best design is not done by chance. COMP Cams® has developed a process that creates the highest quality valve spring available. The result is a product that meets and exceeds the expectations of today’s engine builders and racers.

Double Timing Chain Kit

Include induction hardened steel billet gears for bullet proof durability
Feature infinitely adjustable camshaft sprocket, 6-degree maximum advance/retard
3 keyway crank sprocket for additional 4-degree incremental adjustability
Pre-stretched, heat-treated single roller chain with heavy-duty large pin design
Torrington roller trust bearing reduces friction
Ideal for all street performance and race applications
No more guessing, no more hoping and wishing, no more piecemeal of cam/lifter/rocker/spring combos....now you can get it all in one place! Recommended for 6.0 LS engines running up to a 76mm turbo and significant boost.

This is an exclusive kit only available from LSX Everything! Here is what is included:

Comp Cams Turbo Cam: 221/225 @ .050 Duration, LSA: 114.0. Lift .608/.612

Recommended Stall: 2500-2800; 3000 Max

 Lifters:

Hydraulic Roller Lifters from COMP Cams® decrease friction and increase longevity when directly compared to flat tappet lifters. They also accept much more aggressive cam profiles than flat tappet lifters allow. Hydraulic Roller Lifters are perfect performance replacements for stock hydraulic roller lifters or retro-fit hydraulic roller lifters for non-roller blocks. Both the OE style Hydraulic Roller Lifters WITH link bars and the retro-fit Hydraulic Roller Lifters WITHOUT link bars can be used with all hydraulic roller camshafts from COMP Cams®.

PushRods:

The pushrod is one of the most important pieces of the valve train, but all too often it’s taken for granted. Pushrods not only have to be strong enough to not fail, bend or burn up at the ends, they must also match the frequency of all the rest of the parts in the valve train, as well as the rpm at which the engine will be run. Today’s all-out race engines demand the highest quality components at every step, and COMP Cams® Hi-Tech™ Pushrods fill that requirement.

Hi-Tech™ Pushrods feature a one-piece design from .080” wall, seamless chromemoly tubing that ensures the ultimate in strength and durability. Ends are precision formed, yielding added thickness and strength in the critical tip area, while maintaining constant wall thickness and concentricity. The pushrods are then heat-treated for maximum strength to ensure compatibility with guide plates. They are OD ground for consistency and black-oxide finished with length and part number laser etched on the OD for ease of identification.

One-piece construction from .080” wall, seamless chromemoly
Heat-treated for extended durability & guide plate compatibility
Precision formed & reinforced ends
Black-oxide finished with laser etched part number & length
Ideal for serious street performance & race applications
Springs

Outer Valve Springs from COMP Cams® allow you to build the perfect spring assembly for your application. The valve spring creation process is far more involved than most people realize. Selecting the right metal stock and creating the best design is not done by chance. COMP Cams® has developed a process that creates the highest quality valve spring available. The result is a product that meets and exceeds the expectations of today’s engine builders and racers.

Double Timing Chain Kit

Include induction hardened steel billet gears for bullet proof durability
Feature infinitely adjustable camshaft sprocket, 6-degree maximum advance/retard
3 keyway crank sprocket for additional 4-degree incremental adjustability
Pre-stretched, heat-treated single roller chain with heavy-duty large pin design
Torrington roller trust bearing reduces friction
Ideal for all street performance and race applications

    LSxEverything Turbo Cam Kit - 221/225

    CompCams

    MSRP: $1,999.99
    $1,599.99
    No more guessing, no more hoping and wishing, no more piecemeal of cam/lifter/rocker/spring combos....now you can get it all in one place! Recommended for 6.0 LS engines running up to a 76mm turbo and significant boost. This is an exclusive kit only...
    MSRP: $1,999.99
    $1,599.99
  • No more guessing, no more hoping and wishing, no more piecemeal of cam/lifter/rocker/spring combos....now you can get it all in one place! Recommended for 4.8-5.3 LS engines running up to a 76mm turbo and significant boost.
This is an exclusive kit only available from LSX Everything! Click product description for more details No more guessing, no more hoping and wishing, no more piecemeal of cam/lifter/rocker/spring combos....now you can get it all in one place! Recommended for 4.8-5.3 LS engines running up to a 76mm turbo and significant boost.
This is an exclusive kit only available from LSX Everything! Click product description for more details

    LSxEverything Turbo Cam Kit - 221/219

    CompCams

    MSRP: $1,799.99
    $1,499.99
    No more guessing, no more hoping and wishing, no more piecemeal of cam/lifter/rocker/spring combos....now you can get it all in one place! Recommended for 4.8-5.3 LS engines running up to a 76mm turbo and significant boost. This is an exclusive kit only...
    MSRP: $1,799.99
    $1,499.99
  • Xtreme Energy XE-R design for standard displacement LS6 and LS1. Race only applications.
Intake Valve Lift (in.)-0.595
Exhaust Valve Lift (in.)-0.598
Int. Duration @ .050 in. (Deg)-232
Exh. Duration @ .050 in. (Deg)-234
Int. Duration Advertised (Deg)-281
Exh. Duration Advertised (Deg)-283
Engine Make/Size: Chevy Small Block (262-400)
Lifter Type: Hydraulic Roller
Usage: Street/Performance
RPM Range: 2400-7200

    XFI XE-R Cam Kit

    CompCams

    $869.99
    Make some real power! Install a CompCams complete kit in your LSx powered car, truck or SUV! Cam Style:Hydraulic roller tappet Basic Operating RPM Range:2,400-7,200 Intake Duration at 050 inch Lift:232 Exhaust Duration at 050 inch...
    $869.99
  • Dip your feet in the CompCams Horsepower pool and make some real power with your LS1/LS2 or LS6!

XFI XE-R Hydraulic Roller Camshaft
GM Gen III/LS1/LS2/LS6 1997-PRESENT (Three-Bolt)

Lift: .595''/.598''
Duration: 281°/283°
Lobe Separation Angle 112°
RPM Range: 2400-7200
Intake Valve Lift (in.) 0.595

    XFI XE-R Camshaft

    CompCams

    $377.99
    XFI XE-R Hydraulic Roller CamshaftGM Gen III/LS1/LS2/LS6 1997-PRESENT (Three-Bolt) Lift: .595''/.598'' Duration: 281°/283° Lobe Separation Angle 112° RPM Range: 2400-7200 Intake Valve Lift (in.) 0...
    $377.99
  • COMP Cams® offers two types of kits to replace stock valve train components for more useable horsepower and a higher rpm operating range. The first is our RPM kit, which includes pushrods, valve springs and retainers. The second RPM plus kit has the same components but also includes lifters allowing for a complete valve train buildup for a new cam.

    LS1/LS6 Valvetrain Upgrade Kit | Stock Cam

    CompCams

    MSRP: $409.99
    $324.99
    These COMP Cams Gen III LSI/LS6 RPM valvetrain upgrade kits are recommended for use when running a camshaft in the stock to high-performance range. They include new chromoly pushrods, beehive valve springs and steel or titanium retainers for use with...
    MSRP: $409.99
    $324.99
  • COMP Cams XFI RPM cam and lifter kits are designed to provide an excellent increase in your ride's performance. Featuring the newest and quickest lobe profiles, these cam and lifter kits are tuned for use in EFI applications, where the extra airflow signal through a carburetor is not required. COMP Cams XFI RPM kits include matching lifters for the ultimate in performance. These kits are great for use with aftermarket cylinder heads. Cam and Lifters, Hydraulic Roller Tappet, Advertised Duration 273/279, Lift .581/.588, Chevy, Kit

    XFI RPM Cam/ Lifter Kit - 222/224

    CompCams

    MSRP: $999.99
    $855.99
    COMP Cams XFI RPM cam and lifter kits are designed to provide an excellent increase in your ride's performance. Featuring the newest and quickest lobe profiles, these cam and lifter kits are tuned for use in EFI applications, where the extra airflow...
    MSRP: $999.99
    $855.99
  • COMP Cams XFI RPM cam and lifter kits are designed to provide an excellent increase in your ride's performance. Featuring the newest and quickest lobe profiles, these cam and lifter kits are tuned for use in EFI applications, where the extra airflow signal through a carburetor is not required. COMP Cams XFI RPM kits include matching lifters for the ultimate in performance. These kits are great for use with aftermarket cylinder heads.

    Comp Cams XFI RPM Cam & Lifter Kit

    CompCams

    MSRP: $699.99
    $575.99
    COMP Cams XFI RPM cam and lifter kits are designed to provide an excellent increase in your ride's performance. Featuring the newest and quickest lobe profiles, these cam and lifter kits are tuned for use in EFI applications, where the extra airflow...
    MSRP: $699.99
    $575.99
