6.2L Engine

6.2L Engine

In 2005, the Generation III was superseded by the Generation IV. This category of engines has provisions for high-displacement ranges up to 7,011 cc (7.011 L; 427.8 cu in) and power output to 638 bhp (476 kW). Based on the Generation III design, Generation IV was designed with displacement on demand in mind, a technology that allows every other cylinder in the firing order to be deactivated. It can also accommodate variable valve timing.

A 3-valve per cylinder design was originally slated for the LS7, which would have been a first for a GM pushrod engine; but the idea was shelved owing to design complexities and when the same two-valve configuration as the other Generation III and IV engines proved to be sufficient to meet the goals for the LS7.

This family of blocks were the first of the generation IV small block with the LS2 being the progenitor of this family and generation. This family of blocks has seen a wide range of applications from performance vehicles to truck usage.


  • Engine Type: LSX-Series Gen-IV Small-Block V-8
◦Displacement (cu. in.): 376 (6.2L)
◦Bore x Stroke (in.): 4.065 x 3.622 (103.25 x 92 mm)
◦Block (P/N 19260095): LSX cast-iron with six-bolt, cross-bolted main caps
◦Crankshaft (P/N 12685659): Nodular iron
◦Connecting Rods (P/N 12649190): Powdered metal
◦Pistons (P/N 19244016): Forged aluminum
◦Camshaft Type (P/N 12623063): Hydraulic roller
◦Valve Lift (in.): 0.551 intake / 0.522 exhaust
◦Camshaft Duration (@0.050 in.): 204° intake / 211° exhaust
◦Cylinder Heads (P/N 12629063): LS3 rectangular port; with “as cast” 68-cc chambers
◦Valve Size (in.): 2.160 intake / 1.590 exhaust
◦Compression ratio: 9:1
◦Rocker Arms (P/N 12669995 int): Investment-cast, roll trunnion
◦Rocker Arms (P/N 12681275 exh): Investment-cast, roll trunnion
◦Rocker Arm Ratio: 1.7:1
◦Recommended Fuel: Regular pump
◦Maximum Recommended rpm: 6600
◦Reluctor Wheel: 58X
◦Balanced: Internal
-----------------------------
The kit also includes hardware and components that does not typically come with a used or salvage yard engine, such as the wiring harness, mass airflow meter and electronic throttle pedal assembly, eliminating the need to source them separately!

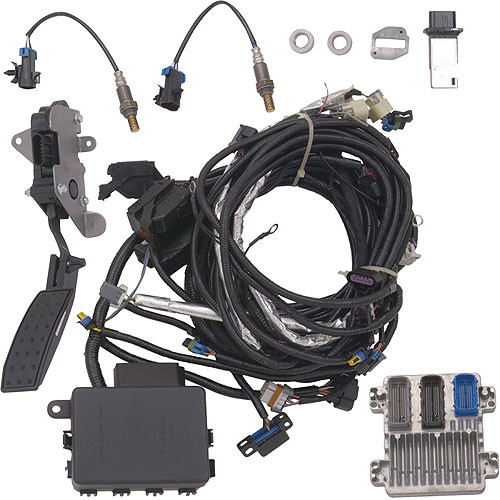

This controller system is a true stand-alone system for use in older vehicles, as all that's needed to get a vehicle running with it are power and ground sources, a 58-psi (400 kPa) fuel pump and an electric cooling fan.

 Features:
•Two oxygen sensors
•Two oxygen sensor mounting bosses (for installation in the exhaust system)
•Mass airflow meter
•Mass airflow meter mounting boss(for installation in the air intake system
•Throttle pedal assembly (for use with the electronically operated throttle)
•Engine wiring harness
•Programmed controller
•Instruction sheet
•12-month/12,000-mile warranty
----------------------

Coupling this Hi–Ram intake with the high flowing LS1/LS2/LS6 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget–minded cost. Aggressive, bold, race–bred styling will make bad intentions clear for drag race, muscle car, marine, off–road, sandrails, pulling trucks, track, street–rod applications and more! Made for Cathedral Port Heads.

 • The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.

• Runner length and the tapered cross–section designed to perform well for a wide range of engine configurations

• EFI fuel rails are machined for –8AN O–ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi–Ram kits.

• Cast aluminum construction.

• Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000–8000+RPM.

 505HP/496LB-FT TQ
Engine Type: LSX-Series Gen-IV Small-Block V-8
◦Displacement (cu. in.): 376 (6.2L)
◦Bore x Stroke (in.): 4.065 x 3.622 (103.25 x 92 mm)
◦Block (P/N 19260095): LSX cast-iron with six-bolt, cross-bolted main caps
◦Crankshaft (P/N 12685659): Nodular iron
◦Connecting Rods (P/N 12649190): Powdered metal
◦Pistons (P/N 19244016): Forged aluminum
◦Camshaft Type (P/N 12623063): Hydraulic roller
◦Valve Lift (in.): 0.551 intake / 0.522 exhaust
◦Camshaft Duration (@0.050 in.): 204° intake / 211° exhaust
◦Cylinder Heads (P/N 12629063): LS3 rectangular port; with “as cast” 68-cc chambers
◦Valve Size (in.): 2.160 intake / 1.590 exhaust
◦Compression ratio: 9:1
◦Rocker Arms (P/N 12669995 int): Investment-cast, roll trunnion
◦Rocker Arms (P/N 12681275 exh): Investment-cast, roll trunnion
◦Rocker Arm Ratio: 1.7:1
◦Recommended Fuel: Regular pump
◦Maximum Recommended rpm: 6600
◦Reluctor Wheel: 58X
◦Balanced: Internal

    Ultimate Boost Ready LS Kit

    $16,999.99
    The C. Stoken Edition Includes the following: Holley 105MM High Ram Intake & Fuel Rails LSx Everything Motor Mount & Crossmember Installation Kit - Includes Holley Oil Pan DBW Throttle Body 120LB Fuel Injectors Accessory Drive Kit...
    $16,999.99
  • Chevrolet Performance LS3 6.2L 376 c.i.d. 430 hp long block crate engines use an impressive 10.7:1 compression ratio to put out 430 hp at 5,900 rpm and 425 lbs.-ft. of torque at 4,600 rpm. They feature a cast aluminum engine block with a nodular iron crankshaft, powdered metal connecting rods, and hypereutectic pistons. The steel hydraulic roller camshaft has a .551 in. intake and .522 in. exhaust valve lift with 204 degrees intake and 211 degrees exhaust valve duration at .050 in. cam lift.

Long block crate engines also include:

* Ignition coil packs
* Spark plug wires
* Spark plugs
* Intake manifold
* Fuel injectors
* Throttle body
* Exhaust manifolds
* 14 in. flexplate
* Front timing cover
* Aluminum water pump
* Harmonic balancer
* Passenger side right hand dipstick and tube Chevrolet Performance LS3 6.2L 376 c.i.d. 430 hp long block crate engines use an impressive 10.7:1 compression ratio to put out 430 hp at 5,900 rpm and 425 lbs.-ft. of torque at 4,600 rpm. They feature a cast aluminum engine block with a nodular iron crankshaft, powdered metal connecting rods, and hypereutectic pistons. The steel hydraulic roller camshaft has a .551 in. intake and .522 in. exhaust valve lift with 204 degrees intake and 211 degrees exhaust valve duration at .050 in. cam lift.

Long block crate engines also include:

* Ignition coil packs
* Spark plug wires
* Spark plugs
* Intake manifold
* Fuel injectors
* Throttle body
* Exhaust manifolds
* 14 in. flexplate
* Front timing cover
* Aluminum water pump
* Harmonic balancer
* Passenger side right hand dipstick and tube

    376 CI | 6.2 LS3 Engine 430HP

    Chevrolet Performance

    MSRP: $8,999.99
    $8,299.99
    Chevrolet Performance LS3 6.2L 376 c.i.d. 430 hp long block crate engines use an impressive 10.7:1 compression ratio to put out 430 hp at 5,900 rpm and 425 lbs.-ft. of torque at 4,600 rpm. They feature a cast aluminum engine block with a nodular iron...
    MSRP: $8,999.99
    $8,299.99
  • LS3 | LSA 600+HP LS3 | LSA 600+HP

    LS3 | LSA 600+HP

    Chevrolet Performance

    $9,999.99
     6.2 LS3 Motor with LSA Supercharger. Easily make 600-700 HP with simple upgrades (injectors, cam, different fuel pump and tune). This combo only has 38k miles on it. Changed plan on build. Ready to go. If you want to make it a combo with LS swap...
    $9,999.99
  • Chevrolet Performance CPP LSX 376-B15 long block crate engines allow builders to stretch the performance of turbocharged or supercharged combinations. These replacement powerplants are durable and feature all-forged rotating assemblies that support up to 15 lbs. of boost. They're topped off with high-flow, LSX-LS3 6-bolt rectangular port heads to create an affordable foundation for power.

    376 CI Boost Ready Long Block | Gen III/IV

    Chevrolet Performance

    MSRP: $10,999.99
    $9,199.99
    Chevrolet Performance CPP LSX 376-B15 long block crate engines allow builders to stretch the performance of turbocharged or supercharged combinations. These replacement powerplants are durable and feature all-forged rotating assemblies that support up to...
    MSRP: $10,999.99
    $9,199.99
  • Main Journal Type: LS mains
Engine Block Style: Aftermarket
Deck Height (in): 9.240 in.
Cylinder Bore as Shipped: 4.065 in.
Engine Block Material: Cast iron
Engine Block Weight (lbs): 225 lbs.
Main Bolt Style: 6-bolt
Main Caps Included: Yes
Main Cap Material: Billet steel
Main Cap Fasteners Included: Yes
Main Bearings Included: No
Rear Main Seal Style: 1-piece
Finished Cylinder Bores: No
Raised Cam Location: No
Cam Bearings Included: No
Freeze Plugs Included: No
Quantity: Sold individually.
Notes: Fully machined block. 4.25 max stroke. Main Journal Type: LS mains
Engine Block Style: Aftermarket
Deck Height (in): 9.240 in.
Cylinder Bore as Shipped: 4.065 in.
Engine Block Material: Cast iron
Engine Block Weight (lbs): 225 lbs.
Main Bolt Style: 6-bolt
Main Caps Included: Yes
Main Cap Material: Billet steel
Main Cap Fasteners Included: Yes
Main Bearings Included: No
Rear Main Seal Style: 1-piece
Finished Cylinder Bores: No
Raised Cam Location: No
Cam Bearings Included: No
Freeze Plugs Included: No
Quantity: Sold individually.
Notes: Fully machined block. 4.25 max stroke.

    376 CI Boost Ready Short Block | Gen III/IV

    Chevrolet Performance

    MSRP: $5,429.99
    $3,999.99
    These Chevrolet Performance LSX Bowtie engine blocks have been designed for the advanced competition engine builder. They feature Siamese cylinder bores and a semi-finished deck height. The Chevrolet Performance LSX Bowtie engine blocks can accept a...
    MSRP: $5,429.99
    $3,999.99
  • 720HP Monster! Click to read more then ORDER!

    416 CI E-force Supercharged Long Block

    Edelbrock

    MSRP: $32,999.99
    $24,999.99
    Edelbrock GM LS 416 c.i.d. E-Force supercharged long block crate engines produce an astounding 720 hp and 695 ft.-lbs. of torque, on 91 octane pump gas! The 4.000 in. stroke and 4.065 in. bore push this LS3 out to a whopping 416 c.i.d. for incredible...
    MSRP: $32,999.99
    $24,999.99
  • Chevrolet Performance CPP LT1 6.2L long block crate engines were introduced on the seventh-generation Corvette Stingray, and opened the next chapter in the long, historic legacy of small block engines. Architecturally similar to the LS family of engines, these LT1 engines feature a unique block casting, cylinder head design, oiling system and more. They're offered with a wet-sump or dry-sump oiling system.

    376 CI | 6.2 LT1 Crate Motor | Long Block

    Chevrolet Performance

    MSRP: $9,800.00
    $7,799.99
    Are you ready to head into this century with even more power, more reliability and more fun? It's your time! Let's go! With 460HP at the ready, you have no excuses on why you cannot get going faster and faster! Free Shipping in the CONUS! * Engine...
    MSRP: $9,800.00
    $7,799.99
  • Click Product Description for more info.

Assembled:Yes

Intake Manifold Included:Yes

Carburetor Included:No

Throttle Body Included:Yes

Cylinder Heads Included:Yes

Cylinder Head Material:Aluminum

Distributor Included:No

Oil Pan Included:Yes

Valve Covers Included:Yes

Timing Cover Included:Yes

Water Pump Included:Yes

Harmonic Balancer Included:Yes

Spark Plugs Included:Yes

Spark Plug Wires Included:Yes

Flexplate Included:No

Flywheel Included:Yes

Transmission Included:Yes

Transmission Controller Included:Yes

Torque Converter Included:No

Wiring Harness Included:Yes

Computer Included:Yes

Reluctor Wheel Tooth Quantity:58

Quantity:Sold as a kit. Assembled:Yes

Intake Manifold Included:Yes

Carburetor Included:No

Throttle Body Included:Yes

Cylinder Heads Included:Yes

Cylinder Head Material:Aluminum

Distributor Included:No

Oil Pan Included:Yes

Valve Covers Included:Yes

Timing Cover Included:Yes

Water Pump Included:Yes

Harmonic Balancer Included:Yes

Spark Plugs Included:Yes

Spark Plug Wires Included:Yes

Flexplate Included:No

Flywheel Included:Yes

Transmission Included:Yes

Transmission Controller Included:Yes

Torque Converter Included:No

Wiring Harness Included:Yes

Computer Included:Yes

Reluctor Wheel Tooth Quantity:58

Quantity:Sold as a kit.

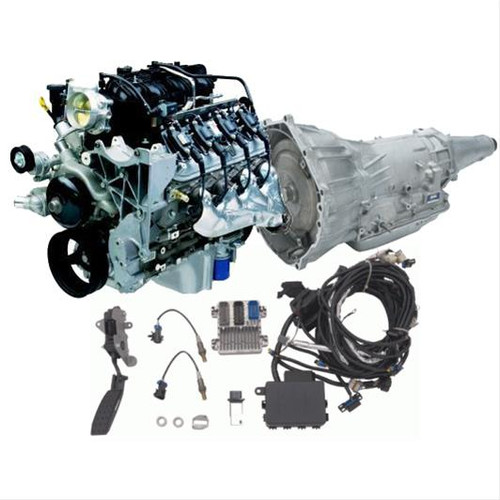

    376 CI | 4L70E A/T Cruise Kit | 495HP

    Chevrolet Performance

    MSRP: $17,999.99
    $15,399.99
    Chevrolet Performance Connect and Cruise LS 376/480 hp engine and transmission packages are factory-matched engine-and-transmission combinations that save time and guesswork. Their engineers matched the engines and transmissions for optimal...
    MSRP: $17,999.99
    $15,399.99
  • Early Adopters! Step right up, and revolutionize your performance with the newest technology available! Chevrolet Performance, Superior LTx HP/TQ, and the best efficiency and power that you could ask or even dream for!
Click for more info! Early Adopters! Step right up, and revolutionize your performance with the newest technology available! Chevrolet Performance, Superior LTx HP/TQ, and the best efficiency and power that you could ask or even dream for!
Click for more info!

    376 CI | 6.2 LT4 S/C | Dry Sump | 650HP

    Chevrolet Performance

    MSRP: $18,999.00
    $15,999.99
    Early Adopters! Step right up, and revolutionize your performance with the newest technology available! Chevrolet Performance, Superior LTx HP/TQ, and the best efficiency and power that you could ask or even dream for!   The all-new LT4...
    MSRP: $18,999.00
    $15,999.99
  • For use with Carbureted LSx Engines

Distributorless plug-in ignition system for carbureted LS engines with 58X reluctor wheel
Several pre-programmed timing curves provided
Supplied software allows you to create custom vacuum advance curves, timing curves, program lo and hi rpm rev limiter and step retard
Plugs into stock sensors (not provided)
MAP sensor provided
Compatible with all LS series ignition coils
Please note that GM controllers, harnesses, and controller kits are stand alone setups and cannot be used along with or instead of the same components in any GM vehicle. They are meant to install an LS crate engine in a vehicle that never had one such as older GM cars or kit cars.

    LSX Ignition Controller | Carbed LS

    General Motors

    MSRP: $599.99
    $475.99
    For use with Carbureted LSx Engines Distributorless plug-in ignition system for carbureted LS engines with 58X reluctor wheel Several pre-programmed timing curves provided Supplied software allows you to create custom vacuum advance curves, timing...
    MSRP: $599.99
    $475.99
  • The LS3 gets a big cam and carbureted intake manifold for an additional 85 horsepower!

You know that the LS3 is the hot new small-block V-8 in the GM arsenal, but you still want more. We proudly offer you the LS376/515, an upgraded LS3 that is equipped with an aggressive camshaft and GM Performance Part’s exclusive carbureted intake manifold. Two simple upgrades that add up to 515 horsepower—an 85 horsepower bump over the stock LS3.

    376 CI | 6.2 LSX Engine | 515HP

    General Motors

    MSRP: $9,599.99
    $8,299.99
    The LS3 gets a big cam and carbureted intake manifold for an additional 85 horsepower!You know that the LS3 is the hot new small-block V-8 in the GM arsenal, but you still want more. We proudly offer you the LS376/515, an upgraded LS3 that is...
    MSRP: $9,599.99
    $8,299.99
  • More power from an LS engine. These Chevrolet Performance 6.2L 376 C.I.D. 495 HP engine assemblies feature an impressive 495 HP at 5,570 RPM with 475 lb./ft. of torque. The assemblies use a production bottom end that includes a cast aluminum engine block, nodular iron crankshaft, powdered metal connecting rods and hypereutectic pistons. The Chevrolet Performance 6.2L 376 C.I.D. 495 HP engine assemblies use the race tested LS hot cam. The hydraulic roller camshaft features .525 in. intake and .525 in. exhaust valve lift with a duration at .050 in. of 219 degrees intake and 228 degrees exhaust. The short block is topped with L95 port cylinder heads with as cast 68cc combustion chambers and 2.16 in. intake and 1.59 in, exhaust valves. That puts you at a healthy 10.7:1 compression ratio! Engine assemblies are complete with valve covers, oil pan, timing cover, harmonic balancer, exhaust manifolds, spark plugs, spark plug wires, ignition coil packs and intake manifold.

Specifications
• Compression Ratio: 10.7:1
• Recommended Fuel: 92 Octane
• Block: Cast Aluminum with 6 bolt cross bolted main caps
• Crankshaft: Nodular Iron
• Connecting Rods: Powdered Metal Steel
• Pistons: Hypereutectic Aluminum
• Camshaft: Steel Hydraulic Roller Tappet
• Cam Lift: .525 in. Intake / .525 in. exhaust
• Cam Duration @ .050 in.: 219 deg. Intake / 228 deg. Exhaust
• Lobe Separation: 112 Degree
• Cylinder Heads: Aluminum L92 style ports
• Combustion Chamber: 68cc
• Valves: 2.165 in. Intake/ 1.590 in. Exhaust
• Rocker Arms: Cast Roller Trunnion, 1.7:1 Ratio
• Balance: Internal
• Reluctor: 58X
• Maximum GM Recommended RPM: 6600
• GM Recommended Torque Converter Stall 2400-2800

Engine Includes
• Fully GM assembled long block
• Ignition Coils, Plug Wires and Spark Plugs
• Oil pump, pick-up and Camaro oil pan
• Exhaust Manifolds
• Intake, Injectors and Throttle Body
• 14" Auto Trans Flexplate
• Harmonic Balancer
• Front timing cover
• Aluminum Water Pump
• Oil Filter
• Passenger Side RH Oil Dipstick and Tube

    376 CI | 6.2L LS3 Engine | 495 HP

    General Motors

    MSRP: $9,199.99
    $7,999.99
     More power from an LS engine. These Chevrolet Performance 6.2L 376 C.I.D. 495 HP engine assemblies feature an impressive 495 HP at 5,570 RPM with 475 lb./ft. of torque. The assemblies use a production bottom end that includes a cast aluminum engine...
    MSRP: $9,199.99
    $7,999.99
  •
Brand new! Fuel-Injected ferocity for performance cars of all ages!

What do you get when you take Chevrolet Performance’s aggressive ASA camshaft – developed for the high-rpm world of circle-track racing and slip it into an LS3 6.2L engine? The answer is 525 horsepower in one of our most powerful production-based crate engines. We call it the LS376/525 and if take-no-prisoner performance is what you’re looking for in your project, this is it!
The ASA camshaft is a hydraulic roller with .525-inch lift on both sides, along with 226 degrees duration on the intake side and 236 degrees on the exhaust side. Coupled with a tight, 110-degree lobe separation angle, it helps the engine deliver excellent throttle response and breathe exceptionally well at high rpm. And for durability, we complement the cam with higher-rate valve springs.

    376 CI | 6.2 LS3 Engine | 525HP

    General Motors

    MSRP: $11,998.99
    $9,899.99
    Brand new! Fuel-Injected ferocity for performance cars of all ages!  What do you get when you take Chevrolet Performance’s aggressive ASA camshaft – developed for the high-rpm world of circle-track racing and slip it into...
    MSRP: $11,998.99
    $9,899.99
