1964-1991 GM Truck Turbo Kit
- Special Order
- Gift wrapping:
- Options available
This is the turbo kit you have been looking for!
Now you have the perfect option for your under powered Chevy/GMC Truck! Tired of not being able to get your dually out of its own way? Now you have the right option, and you don't need a Cummins to get it done and have that sound! LS Swap it and GO TURBO! Please note that for best results, you will want to use our Motor Mounts for your swap.
Perfect Fitment. Keeps All Stock Parts and Accessories. MAF Sensor Wires May Need to Be Cut and Extended. For the 63-72 Trucks, we include motor mounts to ensure perfect placement in your engine bay. The standard kit comes with a single Big T4 Turbo Provision, Supports 700-800 WHP. The standard turbo is most efficient up to 18psi, the ball bearing turbos are efficient up to 22-35 psi each, depending on which version you get (ball bearing vs. billet ball bearing).
60mm Vband WG and 50mm BOV Provision
2.5" Cross Pipe
3" Turbo Downpipe then Enlarged to 3.5" Exhaust Pipe
For Larger Vortec V8 (5.3L, 6.0L) with Built Motor and Larger Turbo, This Kit Supports 700-800 WHP with the standard turbo. Expect more with the Turbo Upgrades and intercooler. Don't forget to your fuel injector upgrade!

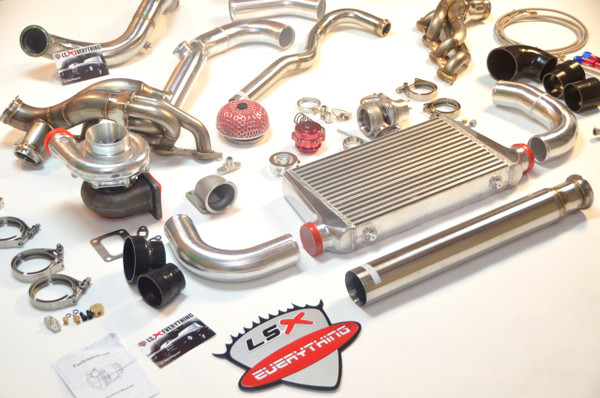

-T76 Turbo, with Filter
-Turbo Headers + Cross Pipe (3 pieces)
-Downpipe (3 pieces)
-Dump Pipe (1 piece)
-2.5'' Vband Clamp x2
-3'' Vband Clamp x3
-T4 Turbo Elbow Adapter x1
-Oil Line Kit
Product Info and Specs:
-Custom designed for 4.8/5.3/6.0. Keeps All Stock Parts and Accessories Stainless Steel 1.65" Runner Tube
-T4 Turbo Elbow Adapter. Flexible Fitment For Many Turbos.
-60mm Vband Wastegate Provision
-2.5" Cross Pipe with Vband Connections
-Comes with 60mm WG Dump Tube
-2 pcs 3" Downpipe Connects to Turbo (Fits Turbo with 3" Vband Exhaust Outlet)
-3.5" Straight Exhaust Pipe
T4 Turbo and Wastegate:
-4" Air Inlet
-2.5" Compressed Air Outlet
-Wet Floating Bearings
-Standard T4 Flange
-76mm Wheel Compressor
-.81 A/R Turbine
-3" V-band Hot Side
-60 mm 12Psi V-Band Wastegate
Intercooler Kit Upgrade is available from the dropdown menu above. Please select your intercooler size, and it will be added to your turbo kit.
-Exhaust Pipe Is 3.5 Straight Pipe, It Does NOT Have Flange Welded, You Will Need To Fabricate the Rest of the Exhaust System.
-Off Road or Track Use ONLY, NOT for Street Use.
