Product Overview

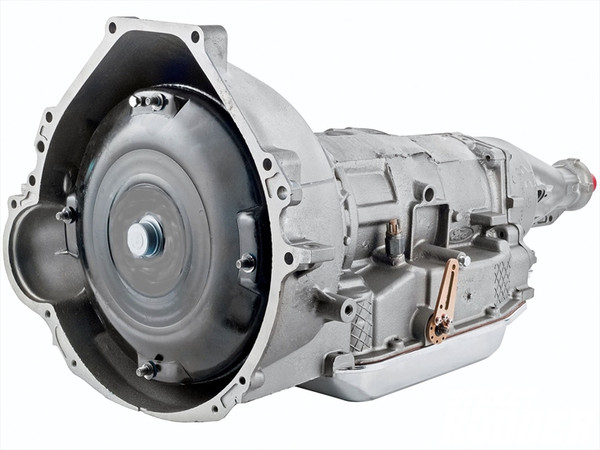

This transmission is remanufactured and has a 2 year/24,000 mile warranty. If you are going to do it, do it right!
This transmission is warrantied for 1,000+HP. If you are need a transmission that will handle less power, our stock replacement 4L80E supports 500HP, which is plenty for most stock builds with cam. Does not include torque converter.
History
The 4L80E transmission is the advanced progeny of the legendary TurboHydramatic TH400 automatic transmission, and is based heavily on the 400 in both parts and strength, yet featuring an added overdrive gear, a lock-up torque converter and advanced electronic controls.
The 4L80E was introduced in 1991 in the GM C/K Trucks line-up, and remained in production through the 2009+ model year.
The 4L80 nomenclature denotes that the transmission is a 4-Speed, Longitudinally mounted, and for 8000 lbs. vehicle weights. It's RPO code is "MT1" and has been domestically manufactured in GM's Ypsilanti and Willow Run plants.
The 4L80 features ratios in each gear as follows: First: 2.48, Second: 1.48, Third: 1.00, Fourth: 0.75, Reverse: 2.07
