500 HP User Tunable Harness System

FiTech has some of the best-engineered and priced throttle body systems on the market. Their LS EFI 500HP fuel injection systems bring incredible ingenuity to the market. FiTech fabricated many aluminum parts for these systems, including the low-profile 92mm billet throttle body, high-volume billet fuel rails, and an intake manifold with 1,500 to 6,500 rpm powerband and 3mm construction.

Sequential spark and fuel control mates 36 lbs./hr. injectors, a plug-and-play wiring harness, and a color touchscreen self-learning ECU. This allows for programing two fan control outputs, most tach and speedometer output drivers, and target AFR and timing on the fly. A suction cup mounting bracket puts the controllers at your fingertips and allows for impressive visual aids.

The optional transmission control feature is suitable for 4L60, 4L65, 4L70, or 4L80 GM transmissions. FiTech LS EFI 500HP fuel injection systems with transmission controller provide impressive power and performance, while allowing you to save a little green for your next tires.

Additional features:

* Black anodized aluminum parts for style and corrosion resistance
* High-flow, cable-operated throttle body
* Bosch wideband-controlled
* Stainless oxygen sensor bung
* Compatible with car and truck coils
* AN fittings and fuel crossover
* Works with custom cams
* Designed for applications making at least 6 inches of vacuum at idle
* 24X and 58X crank and cam compatible
* Programmable touchscreen hand-held controller with data log features

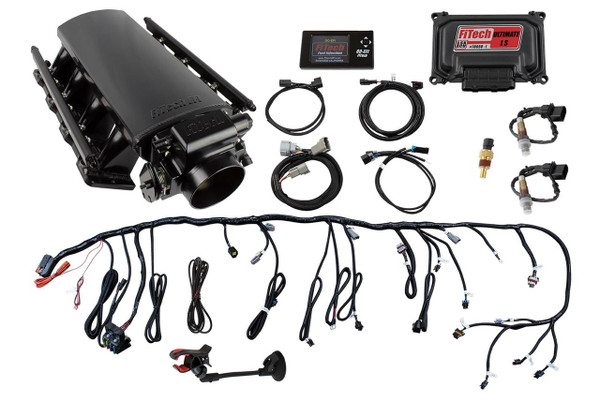

Fuel Injection System, Ultimate LS EFI, 500 HP, LS1/LS2/LS6, Without Transmission Controller, Kit. Self Tuning: Yes User Tunable: Yes Maximum Horsepower with Gas: 500 Timing Control Compatible: Yes EGR: No Transmission Controller Included: No Injection Style: Multi-port Metering Style: Speed density (Map-N) and speed throttle (Alpha-N) Power Adder Compatible: No Intake Manifold Included: Yes Intake Section Included: Complete Intake Material: Aluminum Intake Finish: Black anodized Engine Block Deck Height: Standard deck Fuel Rails Included: Yes Throttle Body Included: Yes Venturi Quantity: 1 Venturi Diameter (mm): 92.00mm Airflow Rate (cfm): 1,000 cfm Throttle Body Material: Billet aluminum Throttle Body Finish: Black anodized Injectors Included: Yes Injector Size (lbs/hr): 36 lbs./hr. Calibration Module Included: Yes ECM Included: Yes Wiring Harness Included: Yes Oxygen Sensor Included: Yes Fuel Pump Included: No Fuel Pressure Regulator Included: No Distributor Included: No MAP Sensor Included: Yes IAT Sensor Included: Yes TPS Sensor Included: Yes IAC Motor Included: Yes Quantity: Sold as a kit. This kit must be used with the factory coil pack sub-harness.
