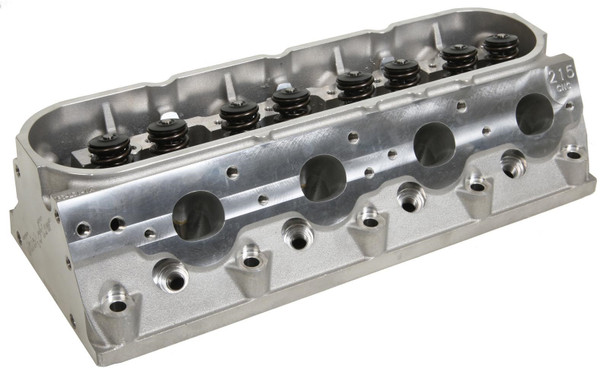

GenX® 215 Cylinder Head

(No reviews yet) Write a Review
SKU:
LSXE.TFS.LSXHD
Gift wrapping:
Options available
  • Trick Flow GenX® 215 cathedral port cylinder heads are fully CNC-machined to significantly increase the performance of 5.7L LS1 engines. Trick Flow engineers altered the valve angles from 15° to 13.5° to decrease valve shrouding, increase mid-lift airflow, and improve rocker arm-to-valve cover clearance. Top-of-the-line CNC Competition Ported runners have a premium high resolution surface finish for maximum flow and performance. The spark plugs were relocated in the CNC-profiled combustion chambers to enhance mid-lift airflow and increase the rigidity of the casting for extreme horsepower applications. Material was added at the rocker arm mounting points to increase high-rpm valvetrain stability.

Cylinder Head Style:Assembled
Cylinder Head Material:Aluminum
Intake Port Shape:Cathedral
Intake Valve Diameter (in):2.040 in.
Cylinder Head Finish:Natural
Combustion Chamber Volume (cc):64
CNC-Machined Combustion Chamber:Yes
Intake Runner Volume (cc):215cc
Exhaust Runner Volume (cc):80cc
CNC-Machined Intake Runner:Yes
CNC-Machined Exhaust Runner:Yes
Combustion Chamber Style:Heart
Intake Port Location:Standard
Exhaust Port Shape:Oval
Exhaust Port Location:Standard
Spark Plug Style:Angle
Intake Valves Included:Yes
Exhaust Valves Included:Yes
Exhaust Valve Diameter (in):1.575 in.
Valve Springs Included:Yes
Maximum Valve Lift (in):0.600 in.
Outside Diameter of Outer Spring (in):1.300 in.
Damper Spring Included:No
Number of Springs Per Valve:Dual
Retainers Included:Yes
Retainer Material:Chromoly steel
Locks Included:Yes
Lock Style:7 degree
Valve Stem Seals Included:Yes
Rocker Arm Studs Included:No
Rocker Arms Included:No
Rocker Arm Nuts Included:No
Guideplates Included:No
Valve Cover Mounting Style:Centerbolt
Accessory Bolt Holes Drilled:Yes
Intake Valve Angle:13.50
Exhaust Valve Angle:13.50
Valve Guides Included:Yes
Valve Guide Material:Bronze
Valve Seats Machined:Yes
Valve Seat Machine Style:3-angle
Valve Seat Material:Ductile iron
Steam Holes Drilled:No
Oiling Style:Through pushrod
Machined for O-Ring:No
Heat Crossover:No
Quantity:Sold individually.
Notes:Must be used with roller rocker arms. Recommended for use on engines with a minimum bore diameter of 3.900 in.
  • Trick Flow GenX® 215 cathedral port cylinder heads are fully CNC-machined to significantly increase the performance of 5.7L LS1 engines. Trick Flow engineers altered the valve angles from 15° to 13.5° to decrease valve shrouding, increase mid-lift airflow, and improve rocker arm-to-valve cover clearance. Top-of-the-line CNC Competition Ported runners have a premium high resolution surface finish for maximum flow and performance. The spark plugs were relocated in the CNC-profiled combustion chambers to enhance mid-lift airflow and increase the rigidity of the casting for extreme horsepower applications. Material was added at the rocker arm mounting points to increase high-rpm valvetrain stability.

Cylinder Head Style:Assembled
Cylinder Head Material:Aluminum
Intake Port Shape:Cathedral
Intake Valve Diameter (in):2.040 in.
Cylinder Head Finish:Natural
Combustion Chamber Volume (cc):64
CNC-Machined Combustion Chamber:Yes
Intake Runner Volume (cc):215cc
Exhaust Runner Volume (cc):80cc
CNC-Machined Intake Runner:Yes
CNC-Machined Exhaust Runner:Yes
Combustion Chamber Style:Heart
Intake Port Location:Standard
Exhaust Port Shape:Oval
Exhaust Port Location:Standard
Spark Plug Style:Angle
Intake Valves Included:Yes
Exhaust Valves Included:Yes
Exhaust Valve Diameter (in):1.575 in.
Valve Springs Included:Yes
Maximum Valve Lift (in):0.600 in.
Outside Diameter of Outer Spring (in):1.300 in.
Damper Spring Included:No
Number of Springs Per Valve:Dual
Retainers Included:Yes
Retainer Material:Chromoly steel
Locks Included:Yes
Lock Style:7 degree
Valve Stem Seals Included:Yes
Rocker Arm Studs Included:No
Rocker Arms Included:No
Rocker Arm Nuts Included:No
Guideplates Included:No
Valve Cover Mounting Style:Centerbolt
Accessory Bolt Holes Drilled:Yes
Intake Valve Angle:13.50
Exhaust Valve Angle:13.50
Valve Guides Included:Yes
Valve Guide Material:Bronze
Valve Seats Machined:Yes
Valve Seat Machine Style:3-angle
Valve Seat Material:Ductile iron
Steam Holes Drilled:No
Oiling Style:Through pushrod
Machined for O-Ring:No
Heat Crossover:No
Quantity:Sold individually.
Notes:Must be used with roller rocker arms. Recommended for use on engines with a minimum bore diameter of 3.900 in.
  • Trick Flow GenX® 215 cathedral port cylinder heads are fully CNC-machined to significantly increase the performance of 5.7L LS1 engines. Trick Flow engineers altered the valve angles from 15° to 13.5° to decrease valve shrouding, increase mid-lift airflow, and improve rocker arm-to-valve cover clearance. Top-of-the-line CNC Competition Ported runners have a premium high resolution surface finish for maximum flow and performance. The spark plugs were relocated in the CNC-profiled combustion chambers to enhance mid-lift airflow and increase the rigidity of the casting for extreme horsepower applications. Material was added at the rocker arm mounting points to increase high-rpm valvetrain stability.

Cylinder Head Style:Assembled
Cylinder Head Material:Aluminum
Intake Port Shape:Cathedral
Intake Valve Diameter (in):2.040 in.
Cylinder Head Finish:Natural
Combustion Chamber Volume (cc):64
CNC-Machined Combustion Chamber:Yes
Intake Runner Volume (cc):215cc
Exhaust Runner Volume (cc):80cc
CNC-Machined Intake Runner:Yes
CNC-Machined Exhaust Runner:Yes
Combustion Chamber Style:Heart
Intake Port Location:Standard
Exhaust Port Shape:Oval
Exhaust Port Location:Standard
Spark Plug Style:Angle
Intake Valves Included:Yes
Exhaust Valves Included:Yes
Exhaust Valve Diameter (in):1.575 in.
Valve Springs Included:Yes
Maximum Valve Lift (in):0.600 in.
Outside Diameter of Outer Spring (in):1.300 in.
Damper Spring Included:No
Number of Springs Per Valve:Dual
Retainers Included:Yes
Retainer Material:Chromoly steel
Locks Included:Yes
Lock Style:7 degree
Valve Stem Seals Included:Yes
Rocker Arm Studs Included:No
Rocker Arms Included:No
Rocker Arm Nuts Included:No
Guideplates Included:No
Valve Cover Mounting Style:Centerbolt
Accessory Bolt Holes Drilled:Yes
Intake Valve Angle:13.50
Exhaust Valve Angle:13.50
Valve Guides Included:Yes
Valve Guide Material:Bronze
Valve Seats Machined:Yes
Valve Seat Machine Style:3-angle
Valve Seat Material:Ductile iron
Steam Holes Drilled:No
Oiling Style:Through pushrod
Machined for O-Ring:No
Heat Crossover:No
Quantity:Sold individually.
Notes:Must be used with roller rocker arms. Recommended for use on engines with a minimum bore diameter of 3.900 in.
MSRP: $1,500.00
$1,250.00
— You save $250.00

Description

Trick Flow GenX® 215 cathedral port cylinder heads are fully CNC-machined to significantly increase the performance of 5.7L LS1 engines. Trick Flow engineers altered the valve angles from 15° to 13.5° to decrease valve shrouding, increase mid-lift airflow, and improve rocker arm-to-valve cover clearance. Top-of-the-line CNC Competition Ported runners have a premium high resolution surface finish for maximum flow and performance. The spark plugs were relocated in the CNC-profiled combustion chambers to enhance mid-lift airflow and increase the rigidity of the casting for extreme horsepower applications. Material was added at the rocker arm mounting points to increase high-rpm valvetrain stability.

  • Cylinder Head Style:Assembled
  • Cylinder Head Material:Aluminum
  • Intake Port Shape:Cathedral
  • Intake Valve Diameter (in):2.040 in.
  • Cylinder Head Finish:Natural
  • Combustion Chamber Volume (cc):64
  • CNC-Machined Combustion Chamber:Yes
  • Intake Runner Volume (cc):215cc
  • Exhaust Runner Volume (cc):80cc
  • CNC-Machined Intake Runner:Yes
  • CNC-Machined Exhaust Runner:Yes
  • Combustion Chamber Style:Heart
  • Intake Port Location:Standard
  • Exhaust Port Shape:Oval
  • Exhaust Port Location:Standard
  • Spark Plug Style:Angle
  • Intake Valves Included:Yes
  • Exhaust Valves Included:Yes
  • Exhaust Valve Diameter (in):1.575 in.
  • Valve Springs Included:Yes
  • Maximum Valve Lift (in):0.600 in.
  • Outside Diameter of Outer Spring (in):1.300 in.
  • Damper Spring Included:No
  • Number of Springs Per Valve:Dual
  • Retainers Included:Yes
  • Retainer Material:Chromoly steel
  • Locks Included:Yes
  • Lock Style:7 degree
  • Valve Stem Seals Included:Yes
  • Rocker Arm Studs Included:No
  • Rocker Arms Included:No
  • Rocker Arm Nuts Included:No
  • Guideplates Included:No
  • Valve Cover Mounting Style:Centerbolt
  • Accessory Bolt Holes Drilled:Yes
  • Intake Valve Angle:13.50
  • Exhaust Valve Angle:13.50
  • Valve Guides Included:Yes
  • Valve Guide Material:Bronze
  • Valve Seats Machined:Yes
  • Valve Seat Machine Style:3-angle
  • Valve Seat Material:Ductile iron
  • Steam Holes Drilled:No
  • Oiling Style:Through pushrod
  • Machined for O-Ring:No
  • Heat Crossover:No
  • Quantity:Sold individually.

Notes:Must be used with roller rocker arms. Recommended for use on engines with a minimum bore diameter of 3.900 in.
