Product Overview
Trying to do a light fuel system for your LS without breaking the bank? Look no further!
- For street/strip applications
- Free-flow capacity of 110 gallons per hour / 416 liters per hour
- Flows 88 gallons per hour maintaining 9 psi line pressure
- Pressure is pre-set at 14 psi (approximately)
- Maximum pressure is 14 psi
- Not compatible with alcohol or methanol fuels
- Not designed or recommended for use with fuel injection systems
- Has externally accessible pressure relief valve
- Tumble polished billet look
- Lower housing casting designed for enhanced fuel flow and quiet operation
- Motor draws only 3 amps current
- 7-1/2 amp fuse recommended
- Improved design for street/strip applications
- Distinctive ''Blue'' logo
- Fuel pressure regulator not included
- Provides constant fuel flow with no pulsation
- Rotor/vane pump design is more tolerant of contaminated fuels

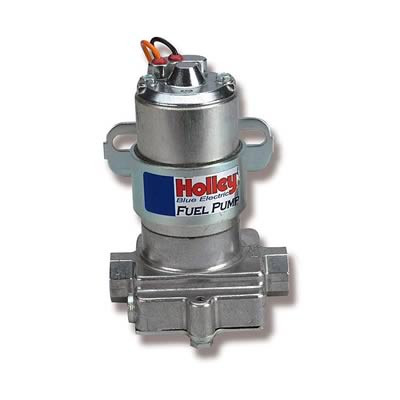

These Blue electric fuel pumps from Holley feature an improved design for street and strip applications, a new lower housing casting for enhanced fuel flow, and a tumble-polished billet look with the distinctive blue logo. These pumps have a 110 gph flow rate, draw only 3 amps, and have a maximum pressure of 14 psi with an externally accessible pressure relief valve.
Use in conjunction with the Edelbrock e-EFI Sump Tank for up to 600 HP on an LS Engine.
