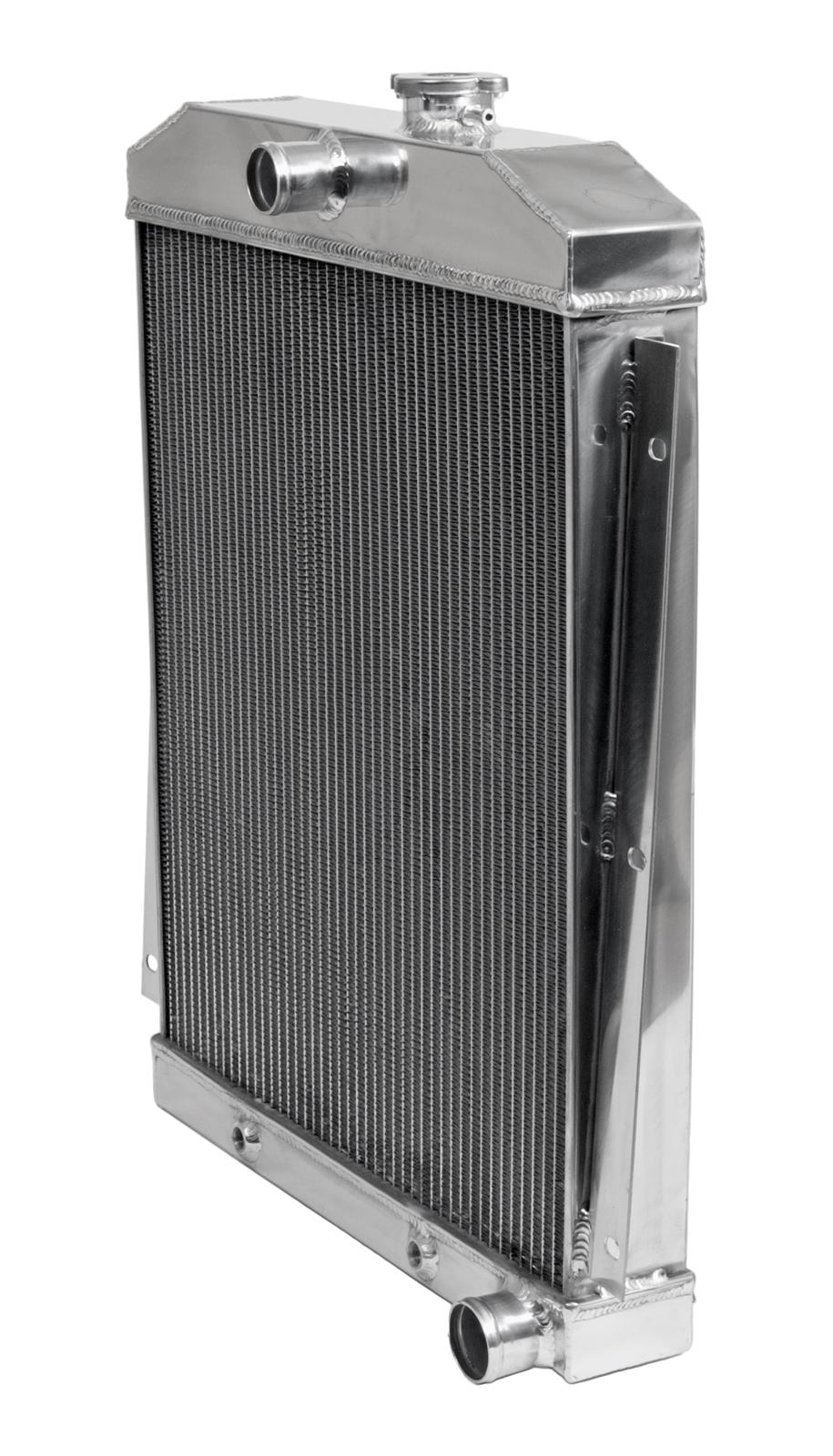

47-54 Chevy/GMC Truck | 4-Core Radiator

Get your 47-54 Truck properly cooled with this 4-core aluminum radiator. See the info below.

• Radiator Style: Downflow
• Overall Width (in):23.000 in.
• Overall Height (in):26.750 in.
• Overall Thickness (in):3.130 in.
• Inlet Location:Center upper
• Outlet Location:Lower passenger side
• Radiator Material:Aluminum
• Radiator Finish:Polished
• Core Width (in):19.250 in.
• Core Height (in):20.750 in.
• Core Thickness (in):3.130 in.
• Row Quantity:4
• Transmission Cooler:Yes
• Trans Cooler Adapter Fittings Included:No
• Inlet Size:1 1/2 in.
• Outlet Size:1 3/4 in.
• Tube Size:5/8 in.
• Fan Included:No
• Radiator Cap Included:Yes



Check OEM radiator dimensions and core dimensions before ordering. Modifications may be required for fitment on some applications. Transmission cooler threads are 1/2 -20 in. straight thread. 1/16 NPT overflow outlet with 5/16 hose barb included. Designed for use with electric fans, the OEM fan shroud is not compatible with these radiators in most applications.
