Product Overview
Want to make some great power with your LS1 or LS2 in your hot rod/car/truck or SUV? Look no further! This kit comes with just about everything that you need. Upgrade it with an installation kit to make life easier.
- Cam Style:Hydraulic roller tappet
- Intake Duration at 050 inch Lift:227
- Exhaust Duration at 050 inch Lift:234
- Duration at 050 inch Lift:227 int./234 exh.
- Intake Valve Lift with Factory Rocker Arm Ratio:0.614 in.
- Exhaust Valve Lift with Factory Rocker Arm Ratio:0.576 in.
- Valve Lift with Factory Rocker Arm Ratio:0.614 int./0.576 exh.
- Lobe Separation (degrees):113
- Camshaft Gear Attachment:3-bolt
- Computer-Controlled Compatible:Yes
- Lifters Included:No
- Valve Springs Included:Yes
- Valve Spring Style:Standard
- Outside Diameter of Outer Spring (in):1.306 in.
- Retainers Included:Yes
- Locks Included:Yes
- Valve Stem Seals Included:Yes
- Timing Chain and Gears Included:No
- Assembly Lubricant Included:No
- Pushrods Included:Yes
- Intake Overall Length (in):7.400 in.
- Exhaust Overall Length (in):7.400 in.
- Rocker Arms Included:No
- Gaskets Included:No
- Valve Springs Required:Yes
The Cam Installation Kit includes everything above, plus the Flexplate Holder and Harmonic Balancer Puller.
The Deluxe Cam Installation Kit Includes everything above, plus:
- Flexplate Holder
- Harmonic Balancer Puller
- Timing Chain Cover Kit
- Billet Timing Chain & Gear
- Upgraded Rockers
Warranty Information

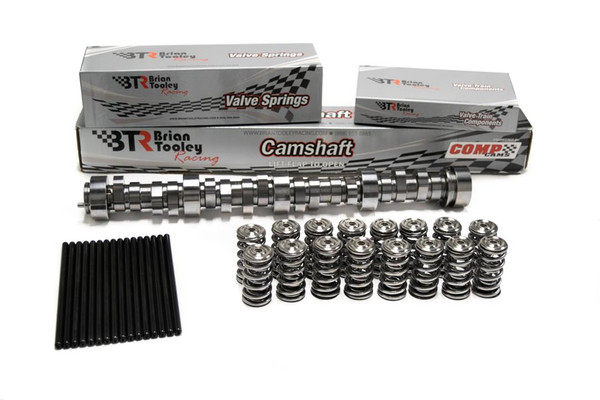

BTR Stage 2 LS1/LS2 camshaft. Includes steel retainers and black valve stem seals. Timing advanced 2 degrees (113+2 LSA).
