Stage IV Truck Cam Kit

(No reviews yet) Write a Review
SKU:
LSXE.TCKB4.0092
Availability:
In Stock
Gift wrapping:
Options available

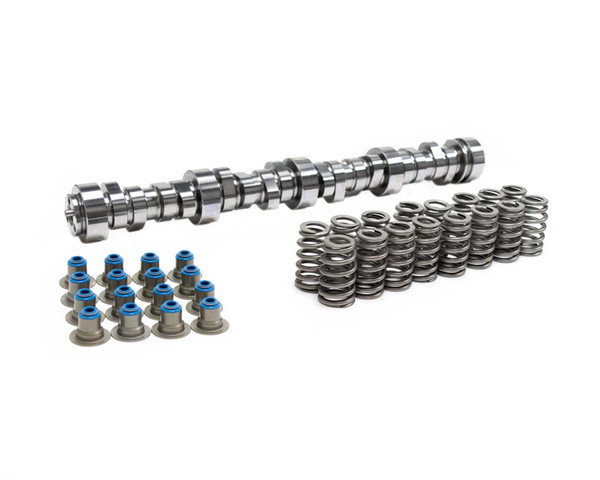

  • Camshaft Kit, BTR Stage 4 Truck, Duration 224/230, Lift .553/.547, Valve Springs, Chevy, LS, Kit
  • Camshaft Kit, BTR Stage 4 Truck, Duration 224/230, Lift .553/.547, Valve Springs, Chevy, LS, Kit
  • Camshaft Kit, BTR Stage 4 Truck, Duration 224/230, Lift .553/.547, Valve Springs, Chevy, LS, Kit
$469.99

Description

BTR Stage 4 truck camshaft. Includes valve stem hat seals. Timing advanced 2 degrees (111+2 LSA).

Requires 3,000-3,200 RPM stall converter.

  • Intake Duration at 050 inch Lift:224
  • Exhaust Duration at 050 inch Lift:230
  • Duration at 050 inch Lift:224 int./230 exh.
  • Intake Valve Lift with Factory Rocker Arm Ratio:0.553 in.
  • Exhaust Valve Lift with Factory Rocker Arm Ratio:0.547 in.
  • Valve Lift with Factory Rocker Arm Ratio:0.553 int./0.547 exh.
  • Lobe Separation (degrees):111
  • Camshaft Gear Attachment:3-bolt
  • Computer-Controlled Compatible:Yes
  • Lifters Included:No
  • Valve Springs Included:Yes
  • Valve Spring Style:Beehive
  • Outside Diameter of Outer Spring (in):1.290 in.
